SU-6800-2

$399.00

The SU-6800-2 provides up to TEN YEARS battery life.

Rated to IP 67, the SU-6800-2 is suitable for a wide range of applications, including trailers, containers or any asset that does not have available power.

Description

The next generation SU-6800 is here – supercharged and more powerful than ever.

The SU-6800-2 is an IP67 rated, rugged 4G Cat-M1/Nb-IoT GPS device designed for tracking non-powered assets where super-long battery life is required without sacrificing the frequency of updates and accuracy performance.

Convenient mounting holes make it easy to mount the SU-6800-2  in the corrugation for container tracking or conceal on the underside of a trailer.

The SU-6800-2 is powered by 2 x D Cell Lithium Thionyl Chloride (LTC) batteries for super long battery life. LTC batteries also offer continued operation in extreme temperatures.

4g

lATEST 4g cAT m1

Our system uses the very latest 4G Cat M1 mobile network to deliver a secure, reliable level of service.

5 STAR

Superior Quality – Smarter Technology – Lifetime Warranty

Like all of our Tracking products, the SU-6800/2 provides more than just a dot on the map.  From smarter technology, to fixed low ongoing costs, Simply Unified are dedicated to providing class leading service backed by our 14 day money back guarantee and lifetime product warranty.

waterproof - Copy

ip67 rated

Rated to IP67, the SU-6800/2 is waterproof and dustproof, making it ideal for both internal or external installation. The SU-6500 is suitable for a wide range of applications, including trailers, container, in fact, anything you need to track!

UP TO 10 YEAR BATTERY LIFE ON GPS TRACKING

Up to 10 year battery life

Battery technology and battery management have seen massive improvements recently. Using our cutting edge technology, we can deliver up to TEN years of battery life.

theft detection and recovery - Copy

THEFT PROTECTION AND RECOVERY

In Australia, hundreds of vehicles, boats, bikes, caravans and other valuable assets are stolen every single day.Using a quality GPS Tracking system from Simply Unified will give you far more information and should the worst happen, you’ll stand a real chance of getting your gear back.

Business Grade Reporting

BUSINESS GRADE REPORTING

Erratic driving not only increases the risk of an accident, but it also increases fuel use, wear and tear and maintenance costs. Our systems provide details on driver behaviour. Features include harsh acceleration, cornering and heavy braking.

Choose your plan

Packages from $99 a year: includes FREE App and unlimited users!

Track 1Track 4Track 24Track Unlimited
Lifetime Warranty
Daily Updates Included1 Update4 Updates24 UpdatesUnlimited Updates
Geofencing
Basic Reporting
Customised Reporting
Email Alerts
Push Alerts
24 Hour Support
Monthly Service Plan$10$14$17$24
Annual Service plan $99$140$170$239
Pay annually and get 2 months FREE!

Detailed Movement Reporting

The amazing flexibility of the SU- 6800-2 can be set to report locations based on specific needs.

Theft Recovery

Should the unthinkable happen and your asset goes missing, with a simple click, users can switch to recovery mode and the unit will report it’s live location every 30 seconds or until the battery fail

Flexible configurations just choose the plan to suit your needs.

The SU-6800-2 can be configured to suit any business need.  Configurations can be remotely changed any any time . Configurations are almost limitless . We’ve put together some of the more popular configurations. For heavy duty applications where extended battery life is needs, we recommend the SU-6800

Example 1 – Periodic updates

Using this configuration the SU – 6800-2 can report a location at regular intervals, for example 4 daily updates

Example 2 – Motion based

With this configuration the SU-6800-2 will provide a location on movement staff and movement end

Example 3 – Motion based with breadcrumb

All the benefits of the motion based configuration with addition of recording an update every 2 minutes uploading the updates every 30 minutes.

Jostle Mode

This feature can be added to any profile and provides updates on small movements whilst maximising battery life. Ideal when assets are being moved around a yard

Key Features

Optional Immediate updates on:

  • Trip start
  • Trip end

The SU-6800-2 can be remotely switched into Recovery Mode which switches the device to do live tracking and reporting – so that you can get your asset back!

The SU-6800 -2 will track successfully where other devices just give up.

This fantastic technology allows the GPS to predict which satellites are in orbit above it and to dramatically reduce the time-to-first-fix of the GPS, and the overall performance of the GPS, especially in ‘urban canyon’ or forested environments

A future firmware version will allow for harsh G-force detection (like assets being dropped or involved in accidents) and report these to the server

The SU-6800-2 has the capacity to hold hundreds of geo-fences that can be downloaded to it from the server. The SU-6800-2 can use this geo-fence information to:

  • Implement arrival and departure alerts
  • Implement speeding zones with audible warning alerts
  • Implement “No-go” and “Keep-out” areas
  • Automatically control outputs, for example to switch on warning lights when inside a special area
  • Warn drivers when approaching dangerous intersections
  • Disable data communications within intrinsically safe areas

Hardware Features

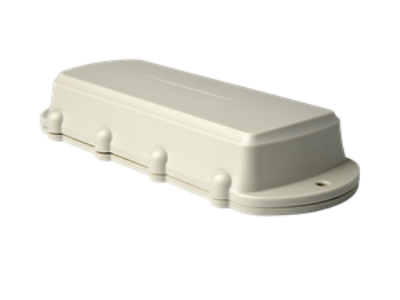

Low-profile IP67 rugged housing

The IP67 rated housing is made of sturdy ABS/Polycarbonate plastic to survive bumps, knocks and to many years in the sun and weather.

It is low-profile making it easier to mount in the corrugation on containers or concealed on the underside of a trailer, for example.

The housing screws together for easy assembly, and has 2 convenient mounting tabs. It also has ‘strap slots’ allowing the SU-6800 Mini to be cable tied or metal strapped to an asset.

Dimensions: 100 mm x 65 mm x 19 mm
Weight: 160 grams with batterie

LTC Batteries

The SU 6800- 2 requires Lithium Thionyl Chloride (LTC) batteries. These offer high capacity, extended temperature tolerance and an extremely low self-discharge rate for the optimal performance in tracking applications.

2 x D Cell LTC batteries

The SU-6800 2 can be set to use Adaptive-Tracking technology where the accelerometer and GPS data are used to intelligently work out if it is moving and to send frequent updates, and to scale the update rate down to once per day if the asset is stationary – to preserve battery life.

10 years @ one position per day (at 25°C)

-20°C to +60°C1
1 Temp spec is for the board and housing. Be sure to check the temperature tolerance of your batteries.

GLONASS

The SU-6800 2 uses both the GPS and GLONASS positioning systems simultaneously.

This allows the device to use twice the number of satellites to get a position fix – making it faster and more accurate.

UBLOX MAX-M8Q GPS module

Supports concurrent GPS and GLONASS
72 channel high sensitivity receiver
-167dBm industry leading tracking performance
Optimal hot-start performance
AssistNow Offline aiding data for fast time-to-first-fix and performance in urban canyon environments

(LNA)

The SU-6800-2’s  GPS signals are boosted by a special low-noise amplifier (LNA).

Even when designing a low-cost device our partners are not prepared to compromise on the performance of the product. You will see the difference if you compare device performance in low signal environment.

CE, RCM, ICASA  A Tick

Internal GPS and Cellular RF antennas tuned by the RF laboratories to ensure optimal performance

The 3-axis accelerometer allows the SU-6800-2 to ‘sleep’ in an ultra-low power state yet still wake-up when movement occurs.

Future firmware versions will allow for harsh G-force detection (like assets being dropped or involved in accidents)

The SU-6800 -2has enough flash to store over 50,000 data records, and will record information even when out of cellular coverage.

The flash memory is also used to store firmware updates, GPS aiding data, parameters and other important information.

A future firmware version will allow for geo-fences to be loaded into the flash memory of the device and used for geo-fence alerting on the device.

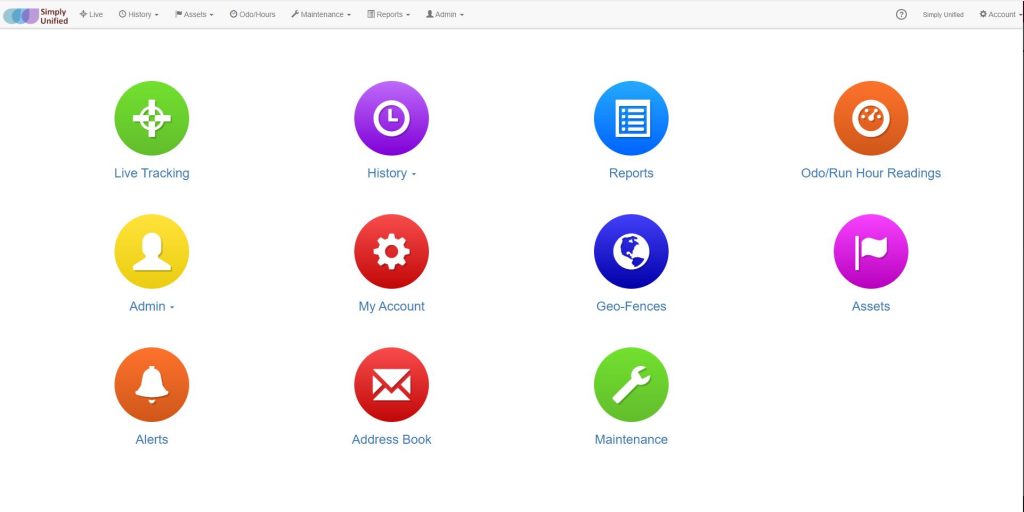

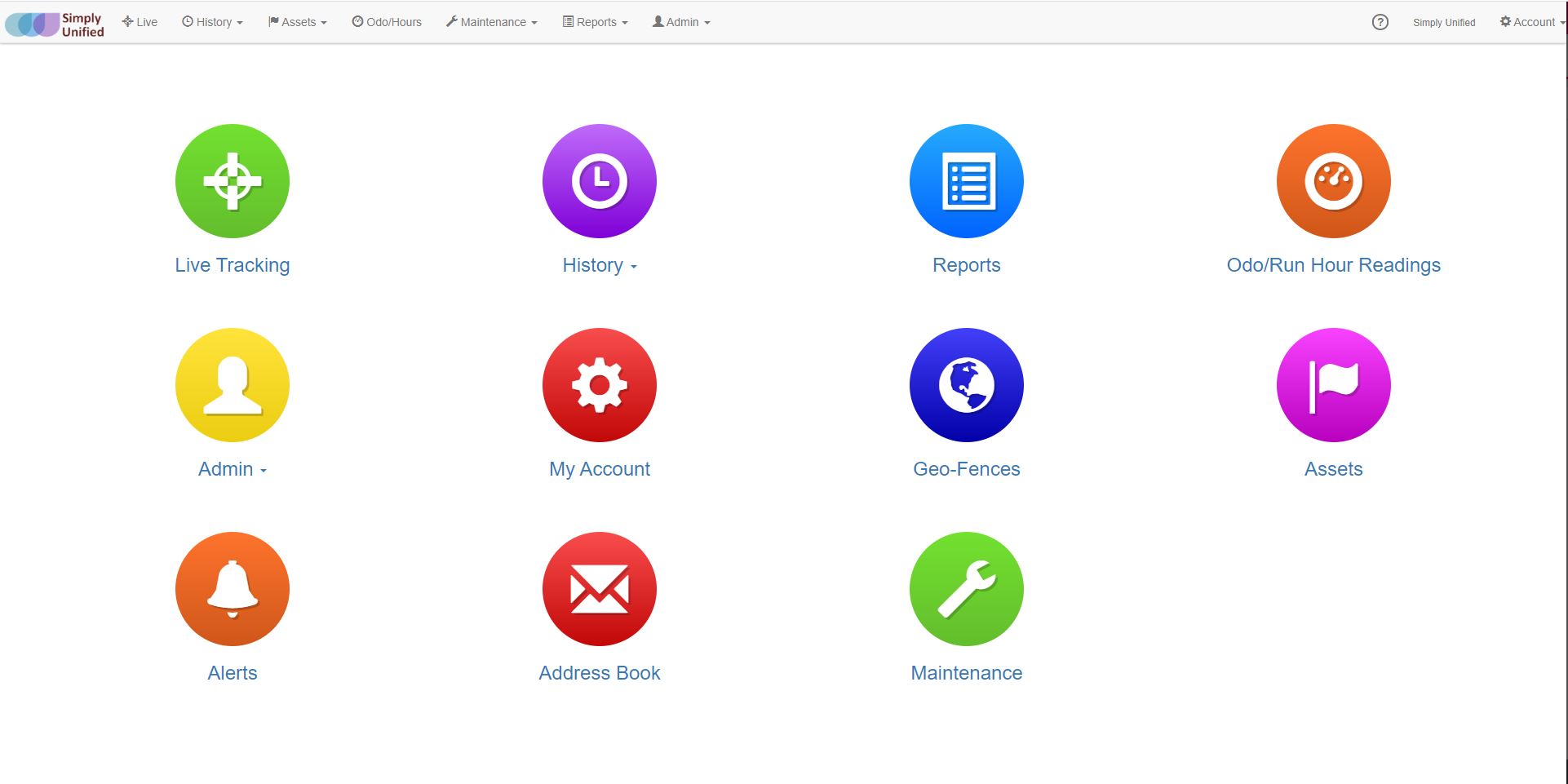

Web Based Software

Intuitive and easy to use

What you see is what you get. Click on the icon, get that information. No searching around hidden menus and confusing techno-babble set-up screens.

So user-friendly and intuitive that you will not need an instruction manual!

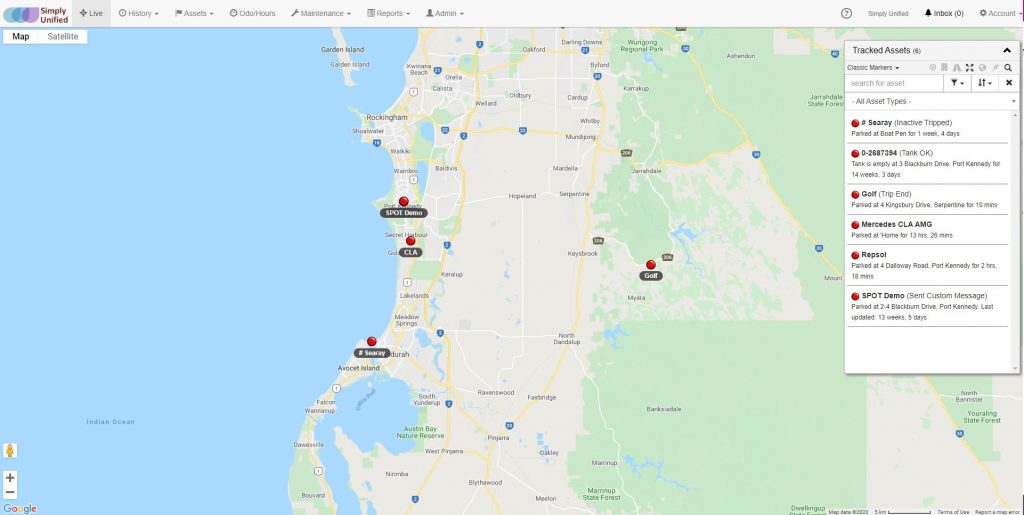

LIVE TRACKING

Simply Unified GPS Tracking Software has been carefully designed to deliver the information you need most when you need it. Unlike other platforms you wont be bombarded with meaningless mounds of telemetry data!  Only useful, visual and meaningful graphic map displays, events & alerts, and excel based reports.

Get the information you need to drive efficiency, productivity and safety.



REAL-TIME GPS TRACKING SOFTWARE

As the world becomes more mobile, touch friendly, browser based responsive software is becoming the new gold standard, a standard which Simply Unified meets and exceeds

With Simply Unified GPS Tracking Software you can do everything on your mobile device that you would normally do at your desktop!

GPS TRACKING SOFTWARE

In addition to pdf and html, Simply Unified GPS Tracking Software offers extensive Excel based reports, with pivot tables embedded for data manipulation. Save your favourite reports, configure your own report formats and even preview them on screen before downloading.

No queuing, processing or waiting, just click and open!

The Timeline feature is an exciting innovation unique to Simply Unified. Events, alerts and activities are recorded in the Timeline creating an instantaneous visual overview of a vehicle or assets activity.

Use the Timeline to quickly understand milestones and incidents.

software

…or set your own trip categorization criteria. Set custom categories for trips e.g. sales, quotes, service, deliveries etc.

Easily create logbooks, business travel reports, customer service reports or any other output.

software

Quickly set geofences in order to raise alerts or record time devices arrive, leave or remain in a specified area.

The are no limits tot the number of geofences permitted.



SmartPhone APP

Quickly locating an asset is now easier than ever with the telematics.guru App. Log in on any Apple or Android device and use the live tracking facility with detailed vehicle information overlaid.



The Telematics.guru App makes it simpler than ever to see where all of your assets are located or travelling in a single glance.  Click on an asset to see the live view screen for an individual asset.



Easily switch to satellite view to get a better understanding of where your assets are. Watch your assets travel in real time on satellite imagery.

Want to know when your vehicle or asset moves? Easily set a movement alert from the App and receive notifications if any movement is detected.



Easily activate Recovery Mode from the App on trackers that are configured to only deliver daily updates for assets that have gone missing!  The tracker will begin live tracking within the App to facilitate asset recovery.



Additional information

Weight 1 kg
Service Plan Required

Track 4 $299, Track 24 $299, Track Unlimited $299
